Precision Mandrel Tube Layout Made Easy
The Cannonball Concepts Fab Mat is a professional-grade tubing layout tool designed to help fabricators accurately mark, cut, and fit mandrel-bent tubing for exhaust systems, turbo kits, intercooler piping, intake fabrication, and custom motorsports projects.
Measuring 22" x 22", the Fab Mat features clearly labeled degree references that eliminate guesswork when laying out cuts on mandrel bends. Simply place your tubing on the mat, align it to the desired angle, and use a laser, straightedge, or marker to transfer precise cut lines onto your tubing.

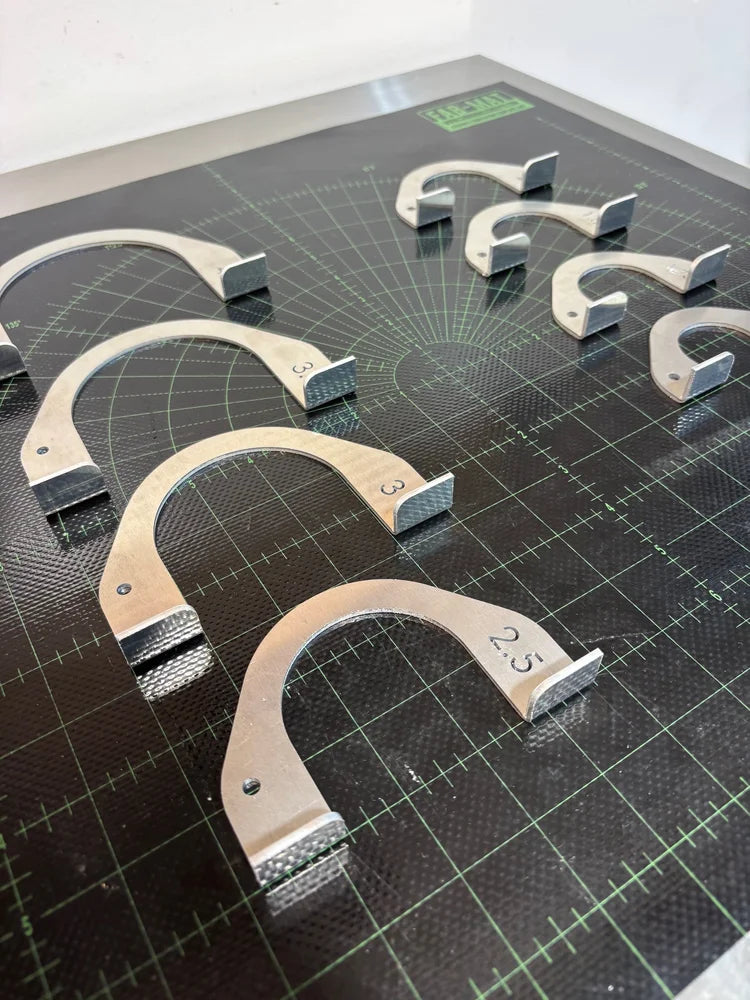

Optional Aluminum Tracing Templates Available

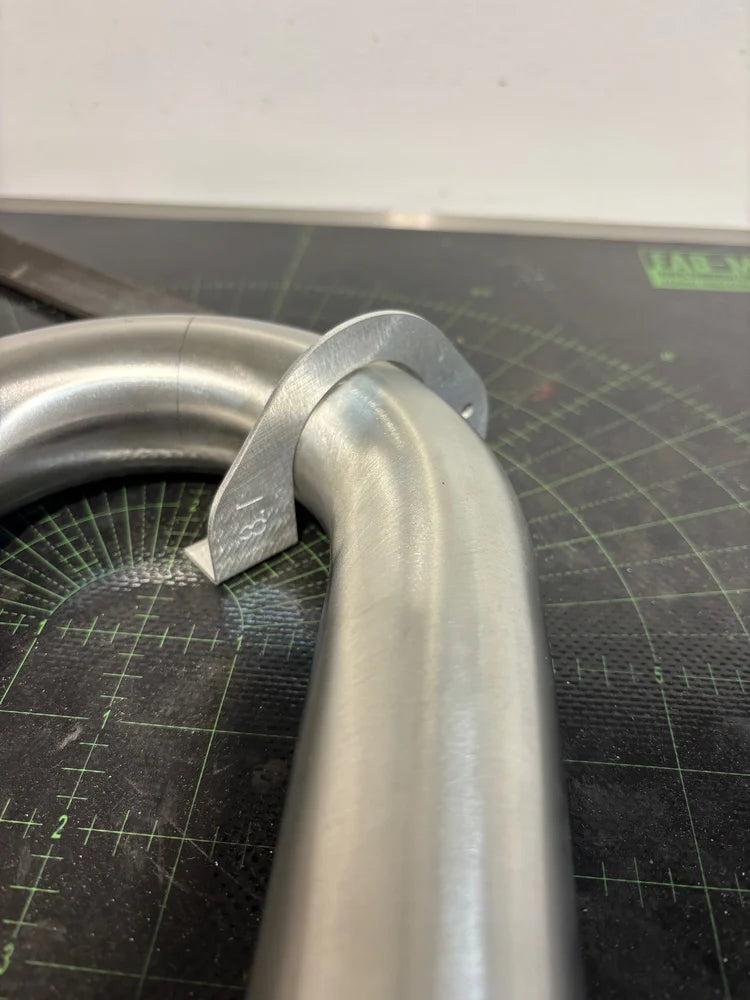

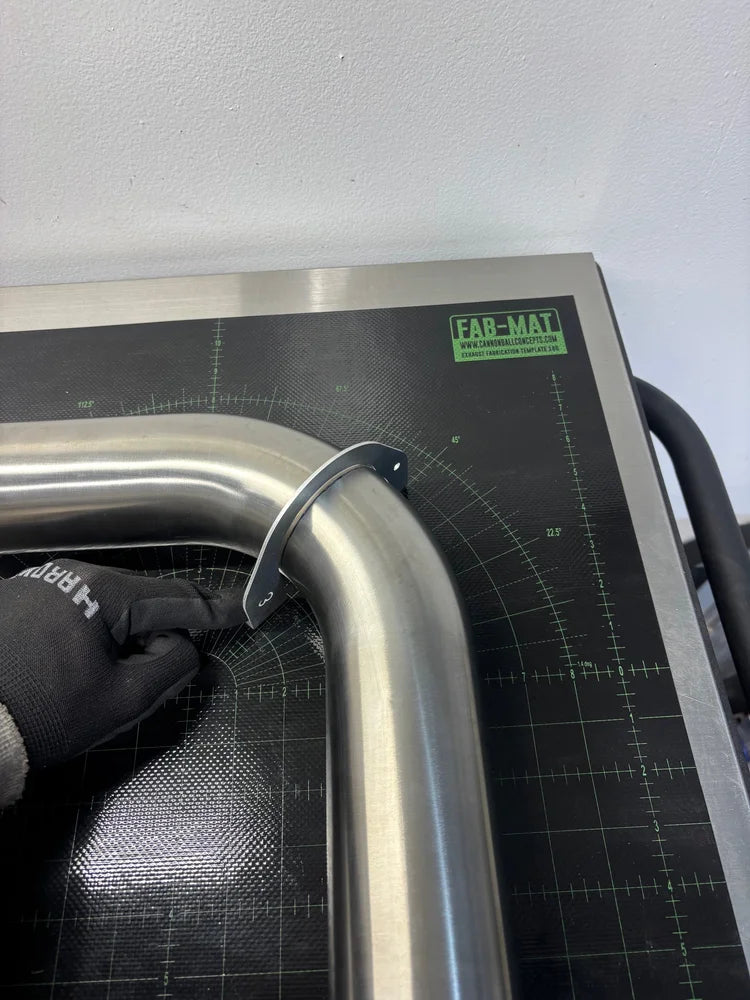

Take the guesswork out of layout even further with our optional aluminum tracing templates. Simply select the desired angle template, place it on your tubing, and quickly trace an accurate cut line in seconds. These reusable aluminum templates are perfect for production work, repeat jobs, and fabricators who want maximum efficiency and consistency.

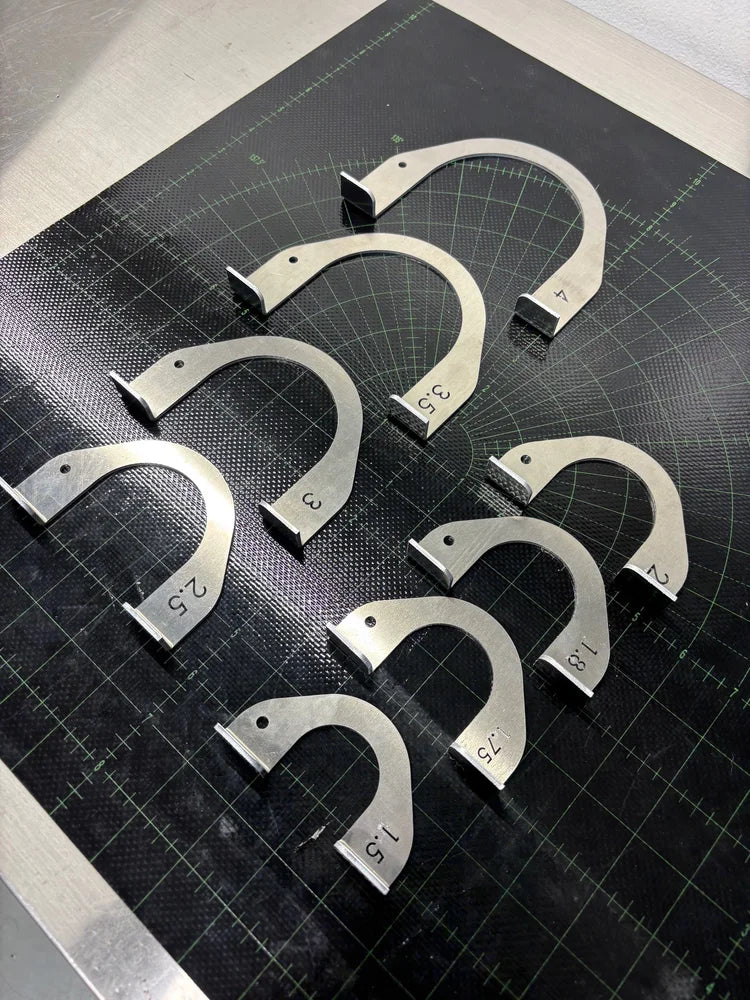

SIZES INCLUDED (1.5", 1.75", 1.875", 2", 2.5", 3", 3.5", 4")
Features
- 22" x 22" fabrication layout mat
- Designed specifically for mandrel-bent tubing
- Clearly marked degree references for accurate cut placement
- Works with lasers, straightedges, and manual marking methods
- Flexible construction rolls up for storage but always lays flat during use
- Reduces fabrication time and improves fitment accuracy
- Ideal for exhaust fabrication, turbo kits, intercooler piping, intake tubing, and custom motorsports fabrication
- Made for professional fabricators, race shops, welders, and DIY builders
Specifications
Dimensions: 22" x 22"
Material: Flexible, durable lay-flat fabrication mat
Applications:
- Exhaust fabrication
- Turbo kit fabrication
- Intercooler piping
- Intake systems
- Custom tubing projects
- Motorsports fabrication
Why Fabricators Choose the Fab Mat
Building quality fabrication work starts with accurate layout. The Fab Mat helps eliminate measuring errors, improves repeatability, and speeds up the fabrication process so you can spend less time marking tubing and more time welding.
